Garage door sensors are an essential safety feature, ensuring that your garage door doesn’t accidentally close on objects, pets, or people. Learning how to wire garage door sensors can save you time and money, especially if you’re dealing with sensor malfunctions or installing a new system. The process might seem daunting at first, but with the right guidance, even beginners can complete this DIY task successfully. By following this step-by-step guide, you’ll understand how to correctly wire garage door sensors, ensuring your garage is safe and functioning properly.
Before beginning, ensure that you have the necessary tools and equipment for the task. Common items include a screwdriver, wire strippers, electrical tape, and a drill, if needed. It’s also crucial to disconnect the power supply to the garage door opener to avoid any electrical hazards. Once the power is off, identify the sensor wires and check for any visible damage or wear that may need repairing. Next, carefully connect the wires to the corresponding terminals on both the sensors and the garage door opener, following the manufacturer’s wiring diagram. Double-check all connections to ensure they are secure before proceeding.
Understanding how these sensors work is the first step to wiring them. They use infrared beams to detect obstructions, preventing the door from closing when the beam is interrupted. Wiring these devices correctly ensures smooth, safe operation for years to come. Let’s explore why this skill is important and proceed to the complete guide.
Why Wiring Garage Door Sensors is Important
Garage door sensors aren’t just a convenient add-on—they are a required safety feature in most modern garage door systems due to safety regulations. Improperly wired sensors or those that aren’t functioning can leave your system non-compliant and, more importantly, unsafe. Without properly working sensors, the door could close even if something is in its path, leading to potential damage or injury.
Additionally, knowing how to wire garage door sensors can help you troubleshoot problems before needing to call a professional. It empowers you to handle small adjustments, replace old sensors, or set up a new garage door opener system with ease. Whether you’re a homeowner looking to save on maintenance costs or a DIY enthusiast, learning this skill is both practical and cost-effective.

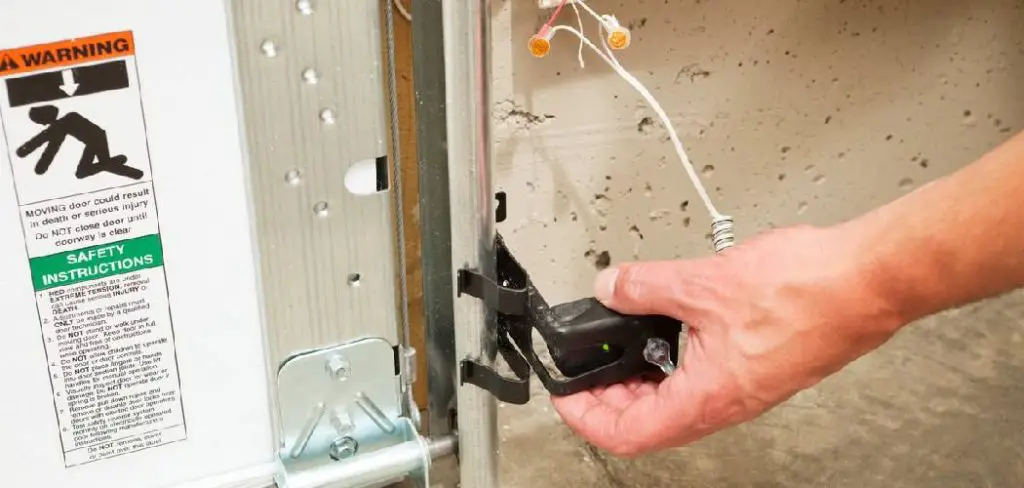

10 Step-by-Step Guide to How to Wire Garage Door Sensors

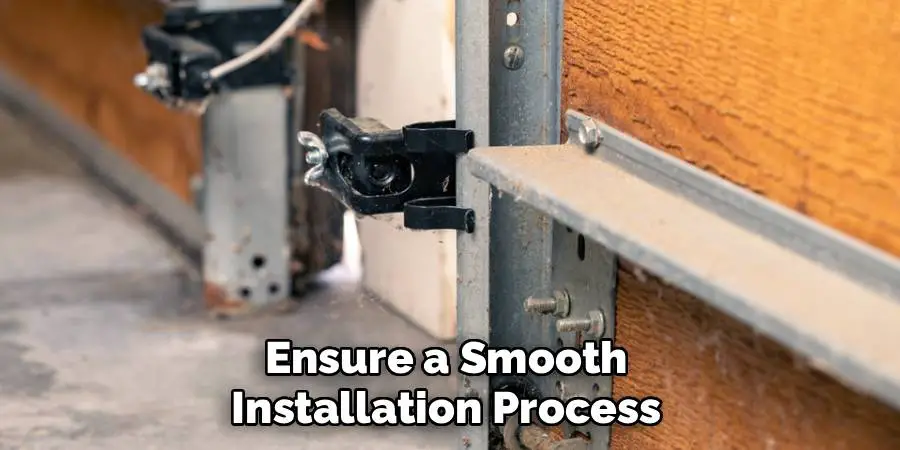

Wiring garage door sensors involves several important steps, from understanding your system to testing the final connections. Follow the steps below to ensure a smooth installation process.
Step 1: Understand Your Garage Door Sensor System
Before beginning, familiarize yourself with your specific garage door opener system. Look for the make and model either on the motor unit or in the user manual. Different manufacturers may have slightly varying wiring configurations, so understanding your specific system is crucial.
For most systems, garage door sensors operate as a pair—an emitter, which sends out the infrared beam, and a receiver, which detects it. These sensors are typically installed on either side of the garage door, a few inches above ground level.
Step 2: Turn Off Power to the Garage Door Opener
Safety is paramount when working with electrical systems. Disconnect the power supply to the garage door opener to prevent any risk of electric shock. You can unplug the opener from the power outlet or turn off its circuit breaker.
Once the power is off, double-check by attempting to operate the garage door using its wall button or remote. Ensure there is no power to the unit before proceeding to the next step.
Step 3: Locate the Sensor Mounting Brackets
Most garage door sensors come with mounting brackets for installation. These brackets are designed to hold the sensors in place and are usually attached to the tracks of the garage door. Locate the brackets and prepare them for wiring. If you’re replacing existing sensors, remove the old ones and inspect the brackets for damage, replacing them if necessary.
Step 4: Attach the Sensors to the Mounting Brackets

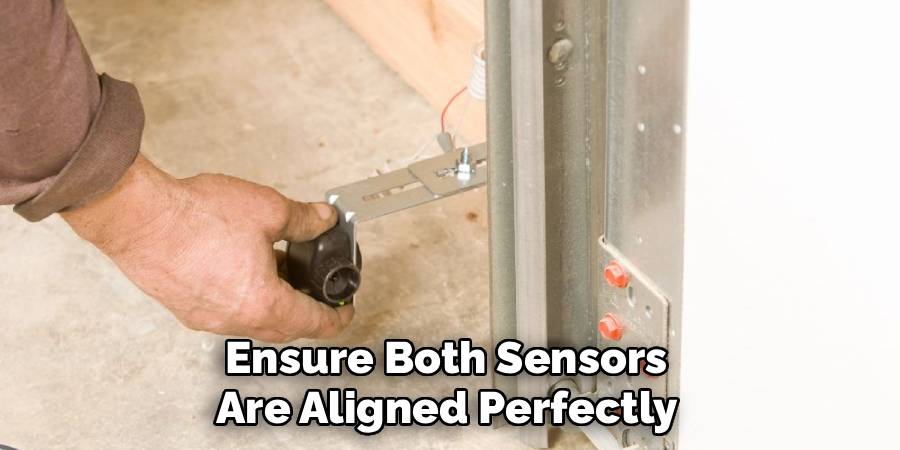

Secure the emitter and receiver sensors to their respective mounting brackets. The emitter, which transmits the beam, is typically labeled as “sending” or “E.” The receiver, which detects the beam, is labeled as “receiving” or “R.” Ensure both sensors are aligned perfectly, as misalignment can prevent the system from working.
Tighten the fastening screws but avoid over-tightening. This will leave room for small adjustments during the alignment phase.
Step 5: Connect the Sensor Wires to the Garage Door Opener
Find the wiring terminals on your garage door opener labeled “Sensor” or “Safety Reverse System.” These terminals typically include two ports for each wire. Take the sensor wires—often color-coded—coming from each sensor, and connect them to the appropriate terminals.
For most systems, white wires go to one terminal, while white wires with a black stripe go to another. Ensure the wires are securely attached and free of kinks or damage.
Step 6: Route the Wires Along the Wall
Use cable staples or adhesive clips to secure the wires along the wall. This step prevents them from hanging loosely, reducing the risk of accidental damage or interference. Leave enough slack for small adjustments near the sensors if necessary.
If you’re dealing with pre-installed conduit or wire tracks, make sure the sensor wires are properly tucked inside for a clean and safe setup.
Step 7: Align the Sensors
Proper alignment is key for the sensors to function. Use the small adjustment screws on the mounting brackets to position the sensors so that they face each other directly. Some models come with LED lights indicating alignment status—usually, a solid or green light means the sensors are aligned.
Test the alignment by closing the garage door manually or electronically. If the door doesn’t reverse when the beam is interrupted, recheck the alignment.
Step 8: Test the Wiring
Once the sensors are wired and aligned, test the setup. Reconnect the power to the garage door opener and activate the system. Place an object, such as a cardboard box, in the path of the beam to see if the door reverses when trying to close.
If the test fails, revisit the connections and alignment steps to ensure everything is correctly configured.
Step 9: Make Final Adjustments
If everything is functioning correctly, secure any loose wires or screws and double-check the stability of the sensors. It’s also a good idea to test the system over several cycles to confirm reliability.
Step 10: Final Safety Inspection
Perform a full safety inspection by observing the garage door’s operation over multiple open-and-close cycles. Ensure the door stops and reverses when something blocks the beam and that the sensors remain securely in place.
Maintenance Checklist
To ensure the long-term reliability and safety of your garage door system, follow this maintenance checklist regularly:
Test Sensor Alignment
Verify that the sensors remain properly aligned with their beams unobstructed
Inspect Wires and Connections
Check for any frayed wires or loose connections and repair or replace as necessary.
Lubricate Moving Parts
Apply appropriate lubricant to hinges, rollers, and springs to reduce wear and ensure smooth operation.
Clean Sensor Lenses
Gently clean the sensor lenses with a soft cloth to remove dust or debris that might interfere with functionality.
Check Door Balance
Manually lift the door halfway and ensure it stays in place without sliding up or down. If not, the door may need adjustment.
Examine Tracks and Rollers
Inspect tracks for bends or obstructions and clean any accumulated debris. Replace worn or damaged rollers promptly.
Replace Weather Stripping
Check the weather stripping along the bottom of the door for cracks or wear and replace if needed to maintain insulation.
Test Safety Features
Regularly test the auto-reverse feature with an object placed in the sensor’s path and ensure it functions properly.
By performing these maintenance steps periodically, you can prolong the life of your garage door system and ensure it operates safely and efficiently.
Frequently Asked Question Section
Can I wire garage door sensors without professional help?
Yes, wiring garage door sensors is a DIY-friendly project if you follow the steps carefully. However, if you encounter issues, such as a lack of power or persistent alignment errors, consulting a professional may be necessary for safety and compliance.
What happens if garage door sensors are not aligned?
Misaligned sensors will prevent the garage door from closing automatically. Many systems have an indicator light to alert you when the sensors are out of alignment. You’ll need to readjust the sensors to fix this.
How do I identify faulty wiring in my garage door sensor system?
Faulty wiring may cause inconsistent operation or a lack of power to the sensors. Check for disconnected, frayed, or damaged wires. Use a multimeter to test for continuity if you suspect electrical issues.
Are all garage door sensors compatible with any opener?
No, garage door sensors are not universally compatible. Always use sensors designed for your specific garage door opener model to ensure proper functionality. Check the manufacturer’s guidelines before purchasing replacement sensors.
How often should I check and maintain my garage door sensors?
Garage door sensors should be inspected at least once every six months. Check for dirt, misalignment, and damaged wiring. Regular maintenance ensures the sensors remain reliable and safe to use.
Conclusion
Wiring garage door sensors may seem challenging, but with the proper guidance, it’s a manageable DIY project. By following the steps outlined above, you’ll ensure your sensors are correctly wired, aligned, and functioning as intended. This not only guarantees safety but also prolongs the lifespan of your garage door system.

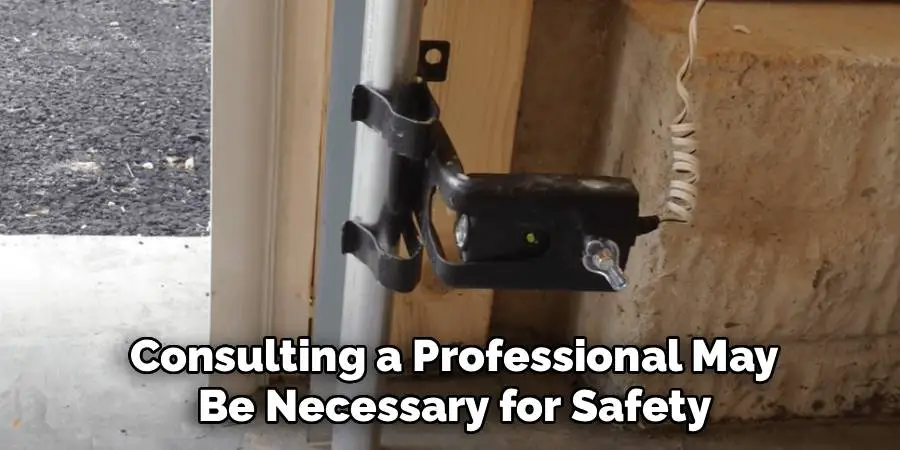

Remember that safety should always be your top priority when working with electrical components. If you are unsure about any part of the process or encounter difficulties, it’s best to consult a professional. Taking the time to complete the job correctly will save you from potential issues down the line and ensure the optimal performance of your garage door system.
Now that you know how to wire garage door sensors, take charge of your garage’s safety and functionality. Whether it’s a new installation or simply troubleshooting an old system, this knowledge will serve you well for years to come.
