Airbags are a critical safety feature in modern vehicles, designed to protect occupants in the event of a collision. Proper installation of airbags is essential to ensure they deploy correctly and provide maximum protection.
This guide will walk you through the basic steps for How to Install Airbags safely and effectively, whether you’re replacing a damaged system or equipping a vehicle with new airbags. Always prioritize safety and follow manufacturer guidelines during the installation process.
Common Reasons for Airbag Installation
There are several situations that may necessitate the installation or replacement of airbags in a vehicle. One of the most common reasons is after an accident where the airbags have deployed. Once deployed, airbags cannot be reused, and replacement is required to restore the vehicle’s safety features. Another reason could be damage to the airbag system due to wear or malfunction, such as issues with sensors, wiring, or the control module.
Additionally, custom vehicle modifications or restorations may include installing airbags to upgrade the vehicle’s safety standards. Regardless of the reason, it is essential to ensure the airbag system is installed correctly to provide reliable protection.

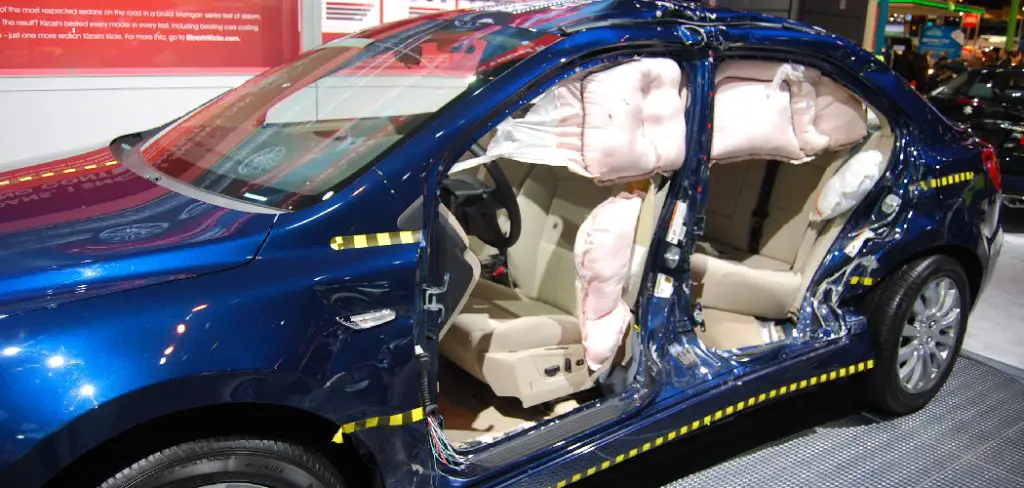

Types of Airbags in a Vehicle
Modern vehicles come equipped with various types of airbags, each designed to provide maximum protection to occupants in different crash scenarios. The most common types include:
- Front Airbags: Installed in the steering wheel and dashboard, these airbags protect the driver and front passenger by reducing the impact force during frontal collisions.
- Side Airbags: Typically placed in the seats or doors, side airbags protect the torso and pelvis of occupants during side-impact crashes.
- Curtain Airbags: Located along the roofline, these airbags deploy downward to protect the heads of passengers in both front and rear seats, especially during rollovers or side-impact accidents.
- Knee Airbags: Positioned beneath the dashboard, knee airbags help protect the lower extremities of the driver and sometimes the front passenger by preventing contact with hard surfaces.
- Rear Passenger Airbags: An emerging feature in some vehicles, these airbags provide additional protection to occupants in the rear seats during frontal or rear-end collisions.
Each type of airbag works in coordination with seat belts to enhance overall safety, reducing the severity of injuries in various types of accidents.
10 Methods How to Install Airbags

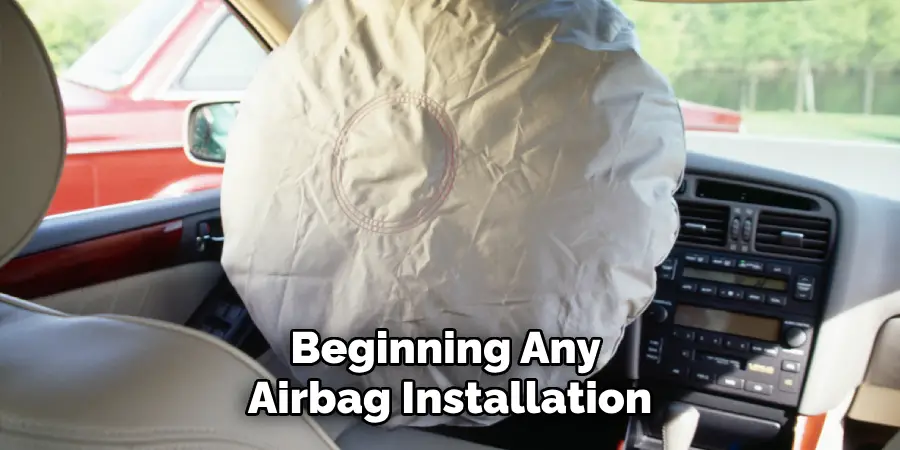

1. Understand Vehicle Airbag System and Safety Protocols
Before beginning any airbag installation, it’s crucial to thoroughly understand the airbag system design specific to the vehicle you’re working on. Modern vehicles use a network of sensors, control modules, and pyrotechnic devices that must function together precisely. Review the service manual to identify the type and placement of airbags—driver, passenger, side curtain, knee, or seat-mounted.
Learn about the Supplemental Restraint System (SRS) components including crash sensors, seatbelt pretensioners, and the airbag control module. Always disconnect the vehicle’s battery and wait at least 15 minutes to prevent accidental deployment. Safety cannot be overemphasized when dealing with explosive devices; proper knowledge protects both the installer and vehicle occupants.
2. Acquire OEM or Certified Replacement Airbags
Only use original equipment manufacturer (OEM) airbags or certified replacements that meet your vehicle’s specific standards. After an accident or airbag deployment, installing non-standard or counterfeit airbags can compromise occupant safety. Sourcing parts from reputable dealers or salvage yards with verified undeployed units is essential.
Inspect each airbag carefully for damage or corrosion and verify compatibility using the part number from the vehicle’s repair manual. Avoid using airbags that have been stored improperly or lack clear manufacturing data. Quality and compatibility are the foundation of a successful and safe installation.
3. Disconnect the Battery and Discharge the Electrical System
Begin every airbag installation by disconnecting the negative terminal of the car battery. This step disables the airbag control unit and reduces the risk of accidental deployment during handling. Wait at least 15 to 30 minutes after disconnecting the battery to allow residual energy to dissipate from the system.
Some vehicles may also benefit from grounding the battery cables together during this time to fully reset the capacitors. Do not proceed with installation until you are certain the system is fully powered down, especially when dealing with driver’s side or seat airbags.

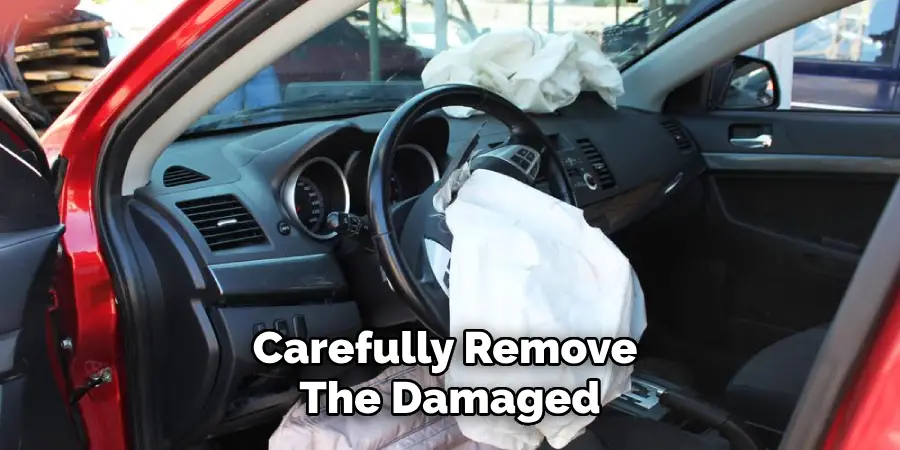

4. Remove the Damaged or Deployed Airbag Components
If you’re replacing a deployed airbag, carefully remove the damaged airbag module and any associated covers, bolts, or trim. For the driver’s side, this usually involves detaching the steering wheel airbag by accessing torx screws behind the steering wheel spokes. The passenger-side airbag is generally located behind the dashboard panel and may require dashboard disassembly.
Always follow your service manual’s disassembly procedure to avoid damaging surrounding components. Be especially cautious when removing wires connected to the airbag unit—label each connector to ensure proper reattachment later.
5. Inspect and Replace Associated Components
An airbag system consists of more than just airbags. When installing new units, you must also inspect and, if necessary, replace associated elements such as the airbag control module (ACM), impact sensors, seatbelt pretensioners, and clock springs. A faulty clock spring can interfere with airbag deployment in the steering wheel, while defective sensors can cause the SRS light to stay on or prevent deployment.
Visually inspect connectors and wiring for signs of burning or damage. If any components show wear, replace them before proceeding. Reinstallation of an airbag without addressing related failures is a serious safety hazard.
6. Install the New Airbag Unit
Once preparations are complete, install the new airbag by reversing the removal process. Gently place the airbag unit into position without pinching wires or forcing the module into place. Align the mounting holes and tighten bolts to the manufacturer’s torque specifications using a torque wrench.
Over-tightening can damage brackets or misalign the airbag, while under-tightening could allow the unit to dislodge in a collision. Reconnect the airbag electrical connectors using the factory color codes, ensuring a firm and secure fit. Most connectors will “click” into place, confirming a proper lock.
7. Reset or Replace the Airbag Control Module (If Required)
In many vehicles, the airbag control module must be replaced or reprogrammed after a deployment. If your module has crash data stored, it must be cleared using OEM diagnostic tools or sent to a certified reset service. Replacing the module requires careful installation under the center console or beneath the seat.
Secure the module using OEM mounting bolts and verify that all harnesses are firmly connected. An improperly seated module can interfere with signal processing or disable the entire SRS system. Once installed, reconnect the battery and run diagnostics to check for stored fault codes.
8. Use Diagnostic Scanner to Verify System Integrity
With the airbag units and related components installed, use an OBD-II scanner with SRS diagnostic capability to verify that the system is functioning correctly. Scan for stored trouble codes and confirm that the system recognizes all airbag modules and sensors.
Many advanced scanners allow you to view live data from the crash sensors, seat sensors, and the airbag control module to ensure accurate communication. If any fault codes are present, address them before finalizing installation. A system check ensures that your work has been successful and that the airbags will deploy if needed.
9. Perform a Visual and Physical Inspection
After a successful reset and diagnostic scan, conduct a full inspection of the work area. Ensure that all bolts are properly torqued, wires are routed safely, and trim pieces are reinstalled securely. Gently test any moving parts such as steering wheels, tilt mechanisms, or seat sliders to ensure that they move freely and are not obstructed by wiring or components.
Reconfirm that the airbag light on the dashboard turns off after initial ignition—this indicates a successful installation. Any flickering or persistent warning lights should be re-diagnosed immediately before driving the vehicle.

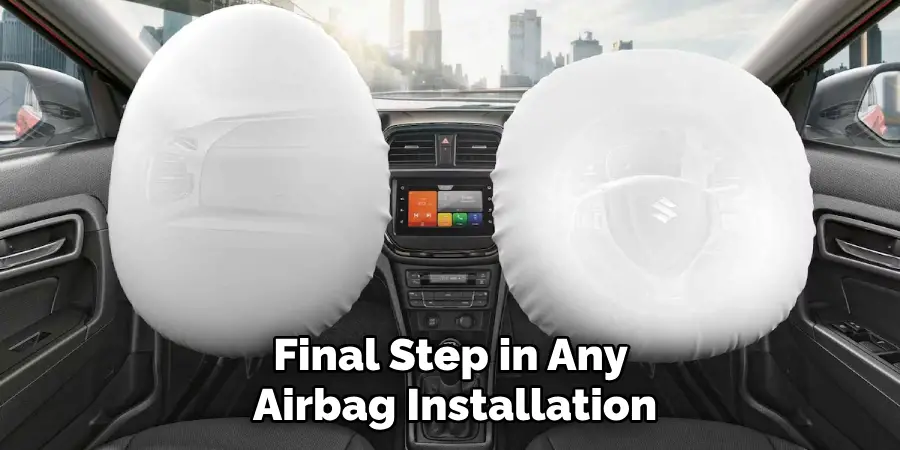

10. Conduct a Post-Installation Test Drive (With Caution)
The final step in any airbag installation is to perform a careful, low-speed test drive in a controlled environment. Start the vehicle and allow the engine to idle for a few minutes while monitoring the dashboard for warning lights. Drive slowly through a parking lot or quiet street, checking that all sensors and warning systems remain off.
Avoid aggressive driving until the system has been fully confirmed functional. If the airbag light reappears, stop the vehicle and rescan the system. Successful performance during a test drive is the final verification of a proper airbag installation.
Conclusion
Installing airbags is not a task to take lightly. Each step—from disconnecting the battery to scanning the system post-installation—carries real consequences for safety. As explosive devices, airbags must be handled with respect, installed with precision, and verified with reliable tools.
Always follow the manufacturer’s instructions, use quality parts, and never cut corners on diagnostics. If you’re unsure or lack the proper tools, consult a certified automotive technician. Thanks for reading, and we hope this has given you some inspiration on how to install airbags!
