How to Open Mazda Key

Your Mazda key fob is a small but mighty piece of technology that gives you access to your vehicle. When the battery starts to die, you might notice a weaker signal or a warning light on your dashboard. Your first thought might be an expensive trip to the dealership, but changing the battery yourself is a simple and cost-effective solution. The only thing standing in your way is the key fob’s plastic casing. While it may seem sealed shut, opening it is a straightforward process that requires no special skills. This guide will provide clear, step-by-step instructions on how to open mazda key fobs, empowering you to replace the battery and get back on the road with confidence.

To begin, gather the necessary tools. You will need a small flathead screwdriver or a similar tool to pry open the key fob. Make sure your workspace is clean and well-lit to avoid losing any small components during the process. Once you have everything ready, locate the seam or notch along the edge of the key fob casing. This is where you will insert the screwdriver to carefully pry it open. Apply gentle pressure and work your way around the edge until the casing separates, revealing the internal components.

Why is it important to handle this process carefully?

Key fobs are delicate devices with small, intricate components that can be easily damaged if too much force is applied or if improper tools are used. Being cautious helps prevent breaking the casing or internal parts, which could render the key fob unusable. Additionally, meticulous handling ensures that you avoid losing essential pieces like screws, springs, or the battery itself, which are critical for the proper functionality of the device. Taking the time to follow the steps carefully can save you from unnecessary repairs or replacement costs.

Step-by-Step Guide on How to Open Mazda Key

Step 1: Release the Mechanical Key

The first step is to remove the physical, mechanical key that is hidden inside the fob. On the back of your Mazda key fob, you will find a small silver latch or switch. Slide this latch to the side and hold it in that position. While holding the latch, you can pull the top part of the key fob (where the keyring attaches) straight out. This will release the valet key. This physical key is not only for manually unlocking your car door if the fob battery is dead but is also the first step in gaining access to the fob’s internal components.

Step 2: Locate the Seam and Pry Slots

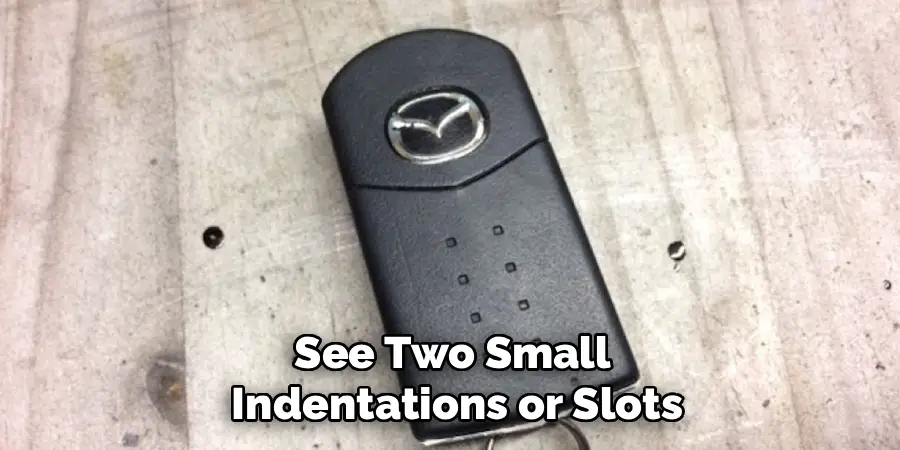

With the mechanical key removed, look closely at the now-empty slot where the key was housed. Inside this opening, you will see two small indentations or slots, one on each side of the narrow interior walls. These are the prying points designed by Mazda to help you open the case. You’ll also notice a thin line or seam that runs around the entire perimeter of the key fob. This seam is where the two halves of the plastic casing are snapped together. These small slots are your entry points to gently separate the two halves of the fob.

Step 3: Gently Pry the Two Halves Apart

This step requires a delicate touch. Take the tip of the mechanical key you just removed, or use a small, flathead screwdriver. Insert the tip into one of the small slots you located inside the key fob’s cavity. Gently twist the key or screwdriver. You should hear a small click as one of the internal clips disengages. Do not try to force the entire case open from this one point. The goal is just to create a small initial gap between the two halves of the casing. This is a crucial part of learning how to open mazda key fobs without causing damage.

Step 4: Work Your Way Around the Seam

Once you have created a small opening, you can work your way around the rest of the key fob. You can use your fingernail, a plastic pry tool (like a guitar pick), or continue to use the small screwdriver to carefully run along the seam. As you move along the edge, you will hear more small clicks as the other internal clips release. Go slowly and apply gentle, steady pressure. Forcing it can break the plastic clips that hold the fob together, so patience is key to separating the two halves cleanly without any damage.

Step 5: Separate the Casing and Identify the Battery

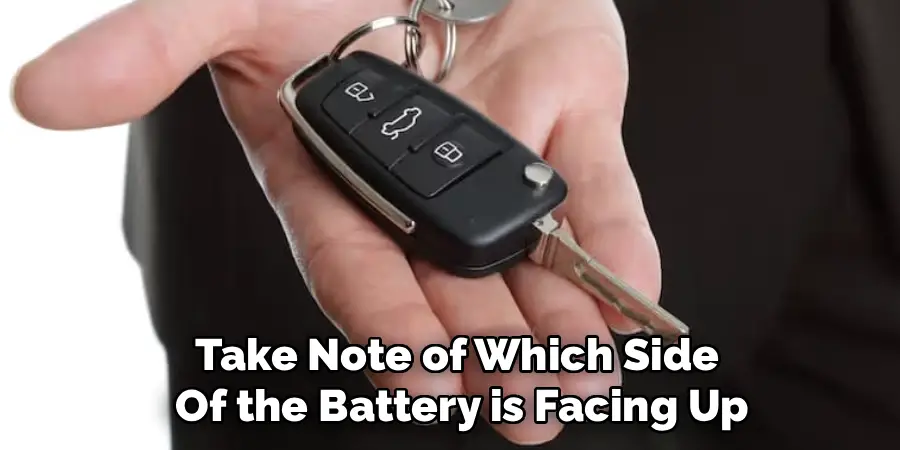

After you have unclipped all the sides, the two halves of the key fob should separate easily. Place them on a flat surface with the internal components facing up. In one half of the casing, you will see the green circuit board. In the other half, you will find the round, coin-like battery. It is typically held in place by a simple plastic housing. Take note of which side of the battery is facing up (the positive “+” side is usually visible). This will be important when you insert the new battery.

Step 6: Remove the Old Battery

Now it’s time to remove the old battery. Most Mazda fobs use a CR2025 battery. You can use a very small screwdriver or even a fingernail to gently pry the old battery out of its holder. There is usually a small gap on one side of the battery housing that allows you to get underneath it. Be careful not to scratch the circuit board or bend the metal contacts that hold the battery in place. The battery should pop out with minimal effort.

Step 7: Insert the New Battery

With the old battery removed, you can now insert the new one. Make sure you are using the correct replacement battery type, which is usually printed on the old battery itself (e.g., CR2025). Carefully slide the new battery into the holder, ensuring the positive “+” side is facing the same direction as the old one was (typically up, away from the circuit board). Press down gently until you feel it click securely into place. A proper connection is essential for the key fob to function correctly.

Key Fob Battery Types

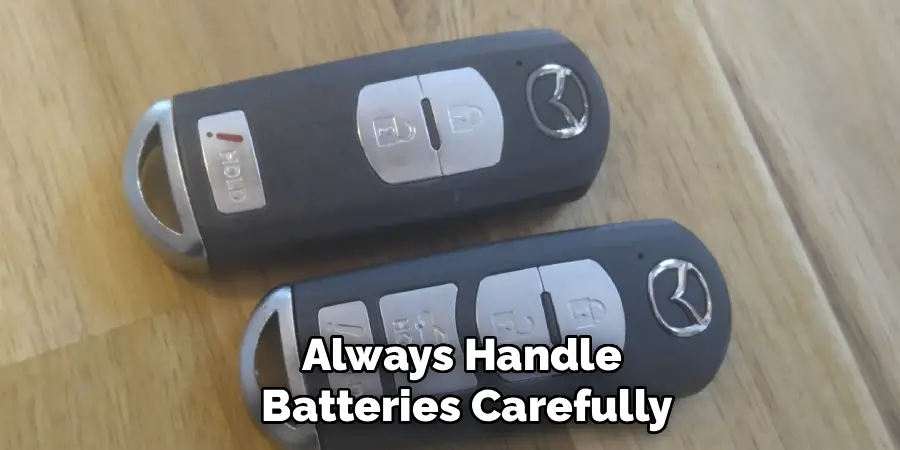

Key fobs typically use small coin or button cell batteries, which are compact and designed to provide long-lasting power. The most common types include CR2032 and CR2025 lithium batteries, which are widely available in electronics or hardware stores. The main difference between these types lies in their thickness, with the CR2032 being slightly thicker and often preferred for devices requiring a bit more capacity. When replacing the battery in your key fob, it’s crucial to check the old battery and use the exact same type to ensure compatibility. Always handle batteries carefully and dispose of the old ones at designated recycling points to reduce environmental impact.

Frequently Asked Questions (FAQ)

What Type of Battery Does My Mazda Key Fob Use?

Most modern Mazda key fobs use a CR2025 3-volt coin battery. However, some models might use a slightly different size, like a CR2032. The easiest way to be certain is to open your key fob and check the model number printed directly on the old battery. These batteries are widely available at electronics stores, supermarkets, and online.

Will I Need to Reprogram My Key Fob After Changing the Battery?

No, in most cases, you will not need to reprogram your Mazda key fob. The fob’s memory is stored on an internal chip that does not rely on the battery for power. As long as you replace the battery relatively quickly, all your settings and the key’s unique code will be retained. Simply replace the battery, reassemble the fob, and it should work immediately.

What if My Key Fob Still Doesn’t Work After Replacing the Battery?

If the fob isn’t working with a new battery, there are a few things to check. First, ensure the battery is installed correctly with the positive “+” side facing the right direction. Second, check if the battery is fresh; even new batteries can sometimes be duds. Finally, inspect the metal contacts inside the fob to make sure they are clean and touching the battery securely. If it still doesn’t work, there may be a more significant issue with the fob’s electronics, which might require a visit to the dealership.

Can I Damage My Key Fob While Opening It?

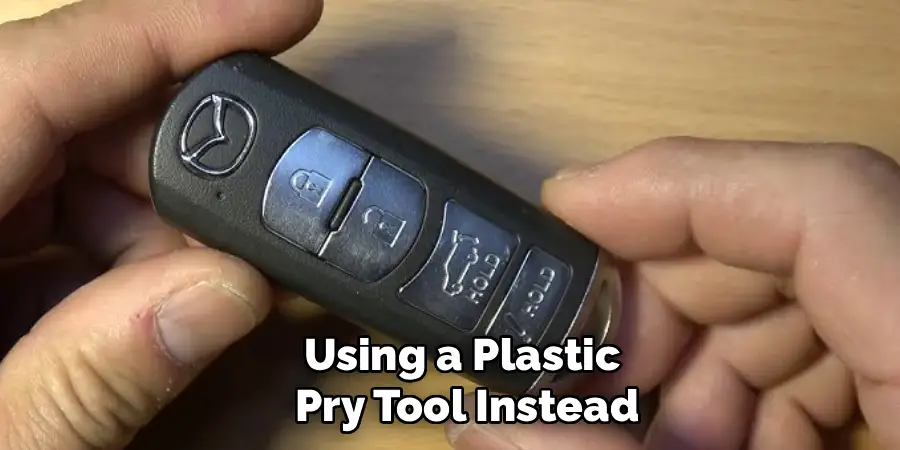

Yes, it is possible to cause cosmetic or functional damage if you are not careful. The most common mistake is using too much force when prying the case open, which can break the small plastic clips that hold it together or scratch the casing. To avoid this, use gentle, steady pressure and work your way around the seam slowly. Using a plastic pry tool instead of a metal screwdriver can also help prevent scratches.

How Do I Know When My Key Fob Battery Is Low?

Your Mazda will give you a few warning signs. You may see a key-shaped warning light appear on your dashboard. Another common symptom is a noticeable decrease in the key fob’s range; you might have to be much closer to the car for the lock/unlock buttons to work. Some models may also display a “Key Battery Low” message on the infotainment screen.

Conclusion

Replacing the battery in your Mazda key fob is a simple, five-minute task that can save you time and money. By following the steps of releasing the mechanical key, gently prying apart the casing, and swapping the battery, you can easily perform this maintenance yourself. The key is to be patient and use a delicate touch to avoid damaging the plastic casing. Now that you have a clear understanding of how to open mazda key fobs, you have the power to keep your key functioning perfectly without relying on a dealership.
