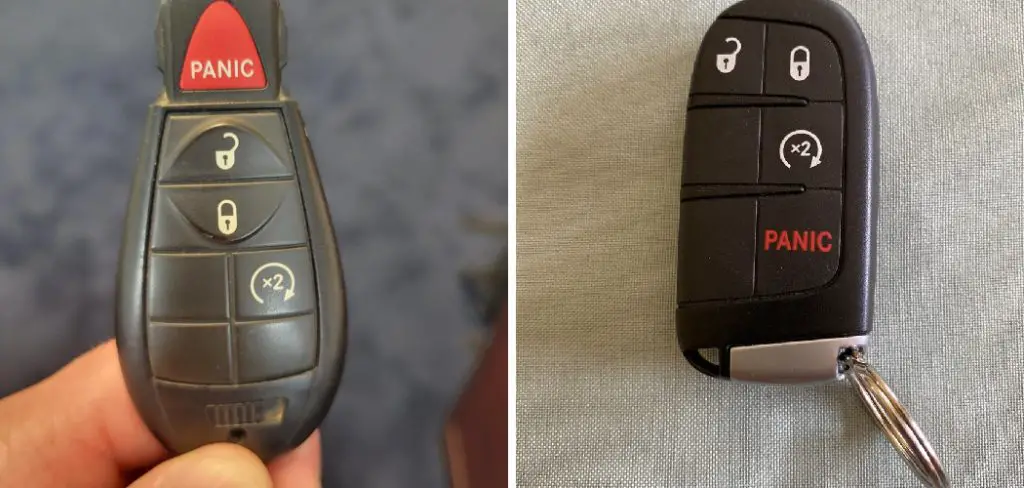

How to Program a Jeep Grand Cherokee Key Fob

Losing a key fob or buying a new one for your Jeep Grand Cherokee used to mean an expensive and time-consuming trip to the dealership. Many owners don’t realize that for many models, you can program a new key fob yourself in just a few minutes, right in your own driveway. This process, while it requires precision, is surprisingly straightforward. Avoiding the cost and hassle of a dealer visit is a rewarding DIY project that puts you back in control. This guide is designed to provide clear, beginner-friendly instructions on how to program a jeep grand cherokee key fob, empowering you to sync your new remote with confidence.

Before diving into the step-by-step process, it’s important to understand the basics of how key fob programming works. Modern vehicles like the Jeep Grand Cherokee use key fobs equipped with a small transmitter that communicates with the car’s security system. By programming the fob, you’re effectively syncing it to your vehicle, ensuring only your remote can access and control it. With a little patience and attention to detail, you’ll have your new key fob working seamlessly in no time.

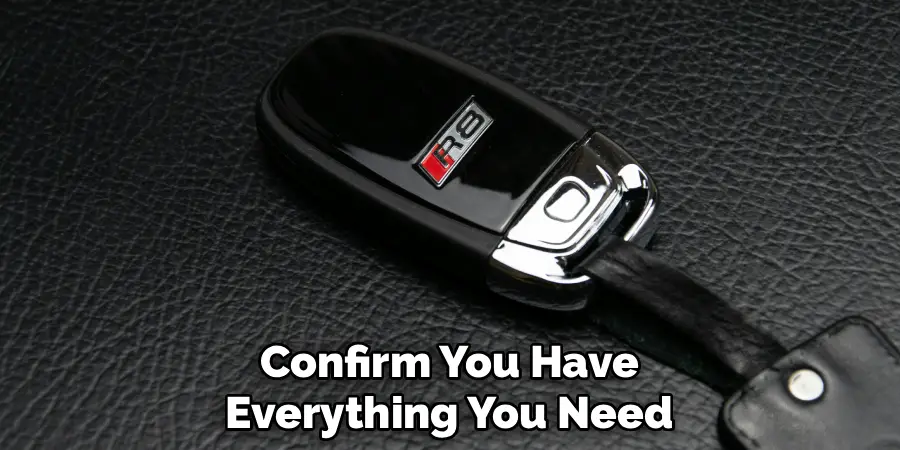

Gather Necessary Materials

Before beginning the programming process, make sure you have all the necessary materials on hand. These include:

• The new key fob
• Your current working key fob (if available)
• A flathead screwdriver (if needed)
• The vehicle’s owner’s manual

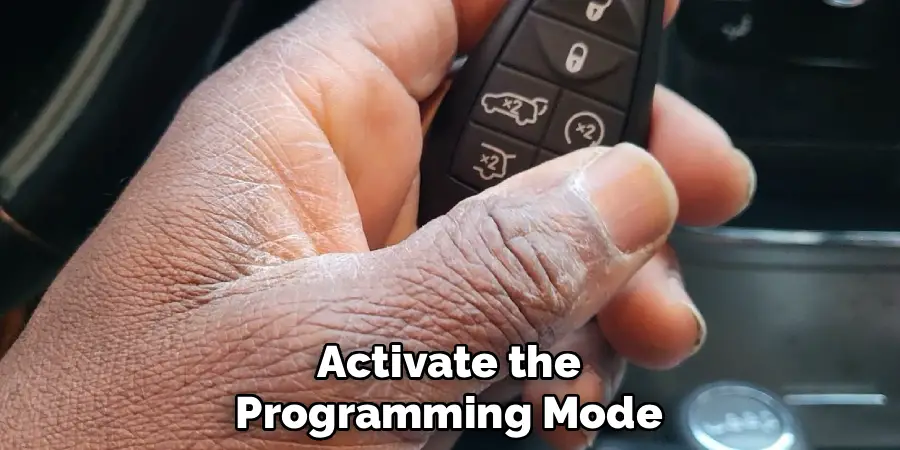

Access Program Mode

To enter program mode, follow these steps:

1. Close all doors and ensure they are unlocked.
2. Insert the key into the ignition, but do not turn it.
3. Press and hold the lock button on your working key fob for a few seconds, then release it.
4. Turn the ignition to the “On” position without starting the engine.
5. Within five seconds of turning the ignition, press and hold both the lock and unlock buttons on your working key fob for about 15 seconds.
6. Release both buttons at the same time.
7. If done correctly, you will hear a chime or see a flashing light indicating that you have successfully entered program mode.

Step-by-Step Guide on How to Program a Jeep Grand Cherokee Key Fob

Step 1: Gather Your Keys and Get in the Vehicle

Before you begin the programming sequence, you need to have all the necessary items with you. You must have at least one existing, working key fob that is already programmed to your vehicle. You will also need the new, unprogrammed key fob that you wish to add. This process will not work if you do not have a functioning key. Once you have both keys in hand, get into the driver’s seat of your Jeep Grand Cherokee and close all the doors. Ensure the vehicle is in “Park” and that all electronic accessories are turned off.

Step 2: The First Key Cycle

This step begins the vehicle’s programming mode. Take your first working key fob and insert it into the ignition. Turn the key to the “On” position, which is where the dashboard lights and radio turn on, but do not start the engine. Watch the dashboard and wait for the vehicle’s security light to turn off, which typically takes about three to five seconds. Once the light is off, you must turn the ignition back to the “Off” position and remove the key. You need to perform this action precisely and without hesitation.

Step 3: Begin the Second Key Cycle Immediately

You must act quickly for the vehicle to remain in programming mode. Within 15 seconds of removing the first key, insert your second existing, working key fob into the ignition. Just as before, turn this key to the “On” position. Again, watch the dashboard instrumentation. You will hear a chime, and the security light will begin to flash. This is the signal that your Jeep has successfully entered the customer key programming mode. This flashing light and chime confirm that the vehicle is now ready to learn the new key.

Step 4: Prepare to Program the New Key

With the vehicle now in its special programming mode, as indicated by the flashing security light, you have a limited amount of time to program the new remote. You will have approximately 60 seconds to complete the next step, so have your new, unprogrammed key fob ready. Turn the second working key that is still in the ignition back to the “Off” position and remove it. The flashing security light and chime are your cue that the system is ready to accept a new key into its memory.

Step 5: Insert and Program the New Key Fob

Within 60 seconds of removing the second working key, insert your new, unprogrammed key fob into the ignition. Turn the key to the “On” position. After about 10 seconds, the security light on the dashboard will stop flashing and stay illuminated for a few seconds. You will also hear a single chime from the vehicle. This is the confirmation that the new key fob has been successfully recognized and programmed into your vehicle’s computer system. The new key is now officially paired with your Jeep Grand Cherokee.

Step 6: Verify the New Key Fob is Programmed

After the confirmation chime sounds and the security light goes out, you can verify that the programming was successful. Turn the new key to the “Off” position. To exit the programming mode, you can simply wait for the 60-second timer to expire or turn the new key back to the “On” position and then off again. Remove the new key from the ignition and test its functions. Press the lock, unlock, and panic buttons to ensure that the remote portion is communicating correctly with your vehicle.

Step 7: Test the Engine Start Function

The final test is to ensure the new key’s transponder chip will allow you to start the engine. With all other keys removed from the vehicle to avoid interference, insert the newly programmed key back into the ignition. Turn the key to the “Start” position. If the programming was successful, the engine will start and run normally. If the engine starts but then shuts off after a couple of seconds, it means the transponder was not programmed correctly, and you may need to repeat the entire process with careful attention to the timing of each step.

Frequently Asked Questions

Can I Program a Jeep Key Fob Myself?

Yes, for many Jeep Grand Cherokee models (typically those from the early 2000s to around 2013), you can program a new key fob yourself as long as you have two existing, working keys. Newer models, especially those with push-button start systems, usually require specialized diagnostic tools and must be programmed by a dealership or a qualified automotive locksmith.

How Many Keys Do I Need to Program a New Jeep Key Fob?

To use the onboard DIY programming method, you must have two valid, already programmed keys. The vehicle’s security system requires two existing keys to authorize the addition of a new key. If you only have one working key (or none), you will not be able to program a new key yourself and will need to visit a dealer or locksmith.

What Do I Do if I Only Have One Working Key?

If you only have one key for your Jeep Grand Cherokee, you cannot use the simple DIY programming sequence. The vehicle’s security protocol requires two keys to enter programming mode. In this situation, your only option is to have a new key made and programmed by a Jeep dealership or a professional automotive locksmith who has the necessary computer equipment to access your vehicle’s security system.

Why Is My Newly Programmed Key Fob Not Working?

If the process fails, timing is the most common issue. The steps must be completed in quick succession. Another possibility is that you have a defective or incorrect key fob model for your vehicle’s year. Finally, some vehicles have a maximum number of keys (often eight) that can be programmed, and if that limit is reached, a new key cannot be added without first erasing one electronically.

How Much Does It Cost to Have a Jeep Key Fob Programmed?

Having a key fob programmed at a dealership can be costly, often ranging from $150 to over $400, depending on the model year and the cost of the fob itself. An automotive locksmith is often a more affordable option, typically charging less for the same service. This is why learning the DIY method for compatible models can save you a significant amount of money.

Conclusion

The thought of programming a modern car key can seem complex, but as you’ve seen, the process can be surprisingly simple. For compatible Jeep Grand Cherokee models, having two working keys is the golden ticket to adding a new one yourself, saving you a substantial amount of time and money. The entire procedure hinges on following a precise sequence with careful timing. By completing the key cycles correctly, you can successfully sync a new remote in minutes. With this guide on how to program a jeep grand cherokee key fob, you are now equipped to tackle this valuable DIY task with confidence.
